OKTOPUS® ERGO-Sprint 350 S T

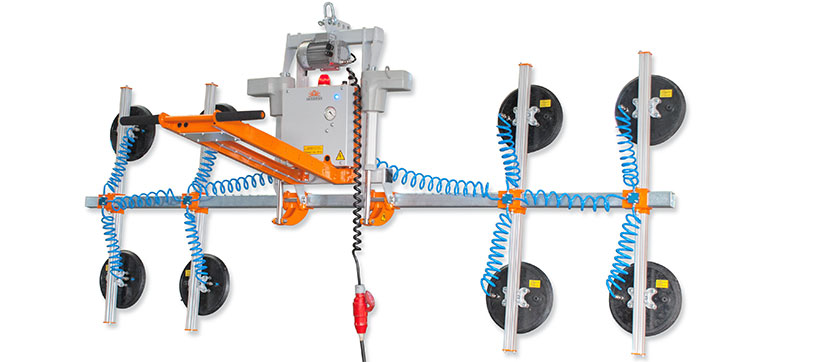

Vacuum lifting device for shop floor operation for lifting and tilting flat glass with a maximum weight of up to 350 kg

Single circuit system

1 vacuum circuit with 2-fold safety and integrated vacuum reservoir
for shop floor operation according to DIN EN 13155 and DIN EN 13035

Use

Handling flat glass panes and window elements. The suction areas of the elements to be lifted must be air-impermeable, have to have an even and clean surface and must not be covered with protective foil.

Hoist

indoor crane, X-Y lightweight cranes, column and wall slewing cranes

Suspension

with adjustable crane eye at the crane hook

Power supply

230 V AC, 400 V AC, 24 V (battery system) DC, compressed air

Material to be lifted

flat glass, windows

Application data

Working Load Limit:	up to 350 kg
Suction frame type	spreader beam: main girder with 4 shifting cross beams
Weight	approx. 130 kg
Suction pads	8 suction pads Ø 280 mm for flat glass panes
Vacuum generation	electric vacuum pump
Operation	vacuum generation: hand slide valve on the device tilting: buttons on the device
Vacuum system	single circuit for shop floor operation
Nominal pressure pneumatic system	-0.65 bar to -0.73 bar
Power supply	230 V AC
Optional facilities	- alternative power supply: 400 V AC, 24 V (battery system) DC, compressed air - variable number of suction pads and cross beams - blow-off function - operation vacuum generation with buttons - integration of chain hoist control (ABUS)
Optional equipment	retainer for pendant control panel - battery charger (with battery system)
Movements
Lifting/Lowering	by crane hook
Rotating horizontally	in the crane hook, manually 360°
Tilting suction frame	electrically, 0-90°; alternative pneumatically, 0-90°
