Load lifting attachment for lifting and positioning of construction elements

Application

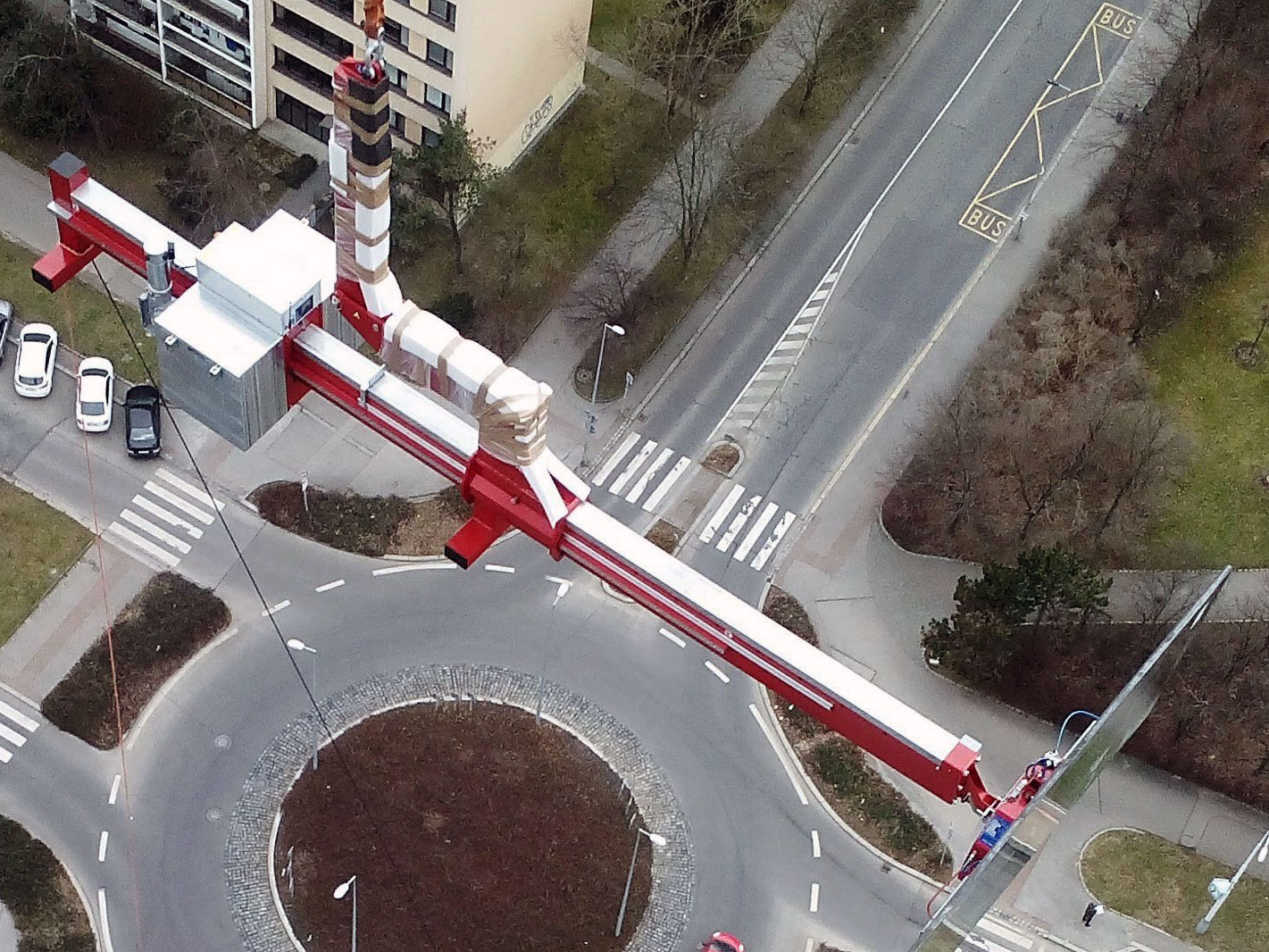

The load lifting attachment counterweight balancer GGA-B 5000/34/3,0/6,0 mVH fulfills the requirements of the DIN EN 13155. With the integrated load hook and together with slings (e.g. ropes, chains, belts etc.) it serves for lifting and positioning construction elements (e.g. those with integrated crane eye) in difficult to access areas (e.g. below eaves, balconies, stages etc.).

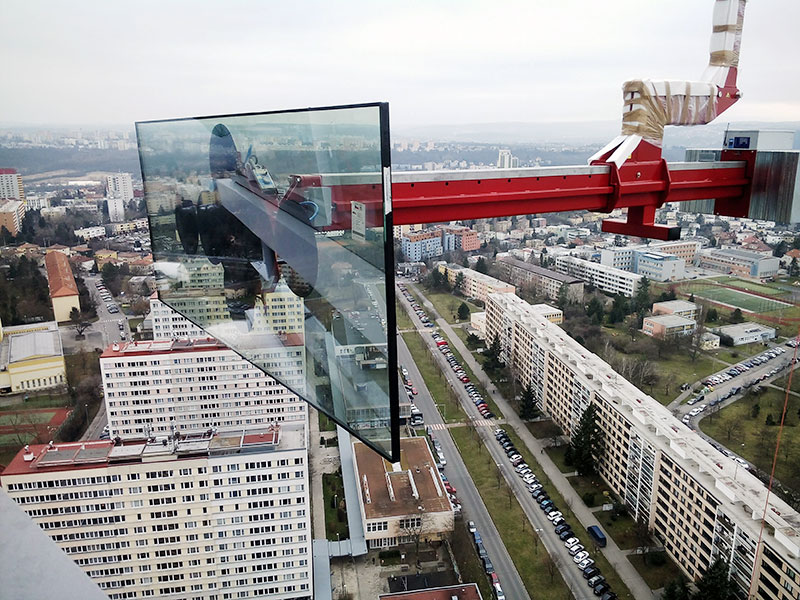

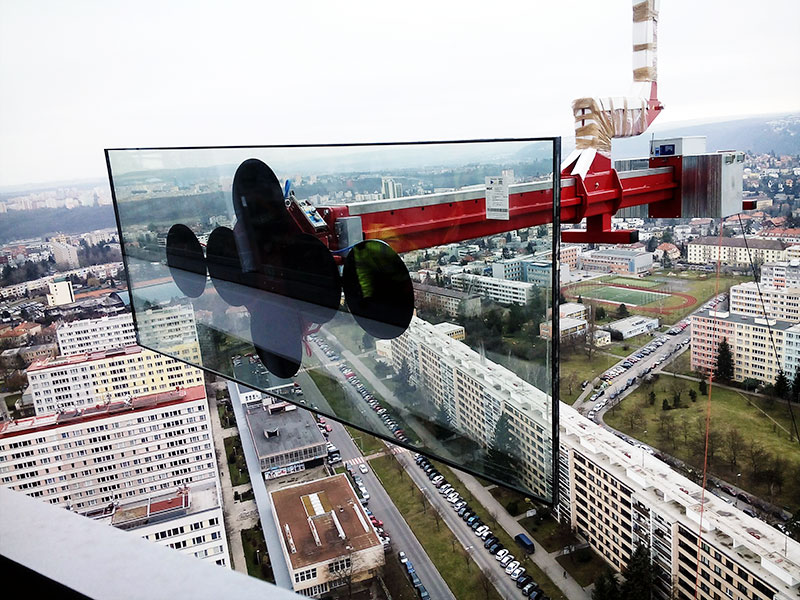

Together with electrically prepared vacuum lifters it is possible to install large-sized glass and façade elements in difficult to access areas with the GGA-B 5000/58/3,0/6,0 mVH.

Electrically driven counterweights allow balancing the loads.

Description

  • electrically driven counterweights operated by cable remote control (optional radio remote control) for balancing loads of up to 5000 kg
  • battery-powered energy supply with high capacity
  • built-in gauge for monitoring energy supplyy
  • electrical connection with mounted vacuum lifters for coupling the “Release” function to the position of the counterweights

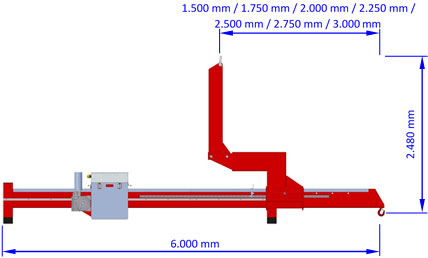

  • OverhangWorking Load Limit of the counterweight balancer
    1,50 m5,000 kg
    1,75 m3,900 kg
    2,00 m3,200 kg
    2,25 m2,650 kg
    2,50 m2,200 kg
    2,75 m1,850 kg
    3,00 m1,550 kg
  • Counterweights34 pieces removable (1 counterweight = 50 kg)
    Operationcable remote control, radio remote control optional
    Power supply24 V battery system
    Weightapprox. 900 kg (without counterweight)
    approx. 2.600 kg (with counterweight)

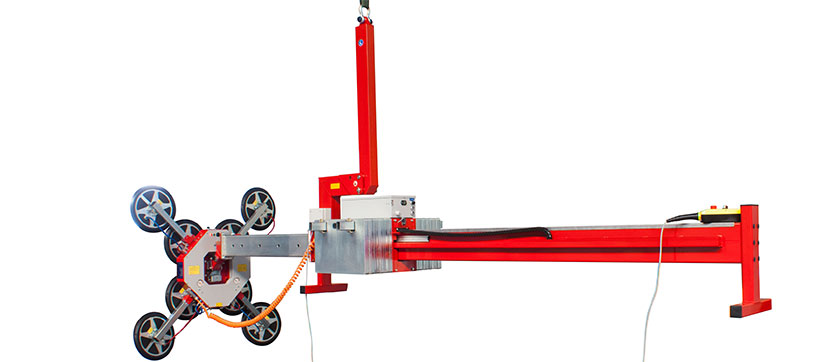

Use of OKTOPUS® GGA-E-B 5000 with Vacuum Lifter

Legend

  • Crane attachment
  • telescopic boom/crane arm/lifting column
  • Control panel at the device / cable remote control
  • Radio remote control
  • Battery
